Features
Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Glass
Step Tempered glass. T=5mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated

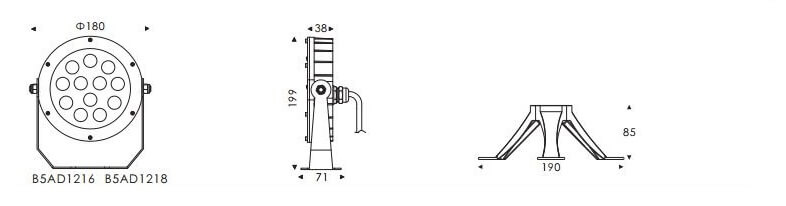

Product Size
Mounting Type
Underwater surface mounted
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| SKU |
|---|
| WT-G-B5AD1216 |
| WT-G-B5AD1218 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 25 | LED 12 x 2W | 950lm | 15° | 6000K | – | ON/OFF, DALI, 1-10V | 06 |
| DC24V | 33.6 | LED 12 x 2W | 600lm | 25° | RGB | – | DMX | 06 |

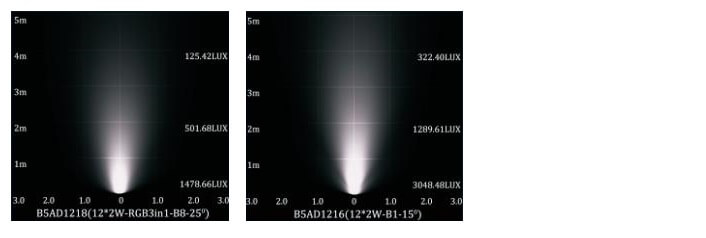

Light Distribution
