Features
Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
EPDM gasket
Glass
Step Tempered glass. T=8mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated

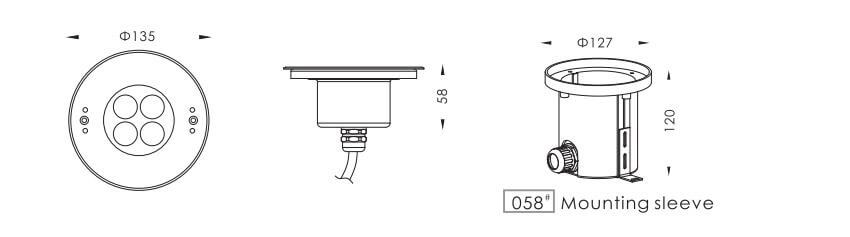

Product Size
Mounting Type
Reccessed mounted
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| WT-G-B4XC0457 |
| WT-G-B4XC0418 |
| WT-G-C4XC0457 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 8.9 | LED 4 x 2W | 595lm | 30° | 6000K | Ra80 | ON/OFF, DALI, 1-10V | 08 |
| DC24V | 15 | LED 4 x 2W | 162lm | 25° | RGB | – | DMX | 08 |
| DC24V | 8.9 | LED 4 x 2W | 619lm | (45/35)° | 6000K | – | ON/OFF, DALI, 1-10V | 08 |
Light Distribution
