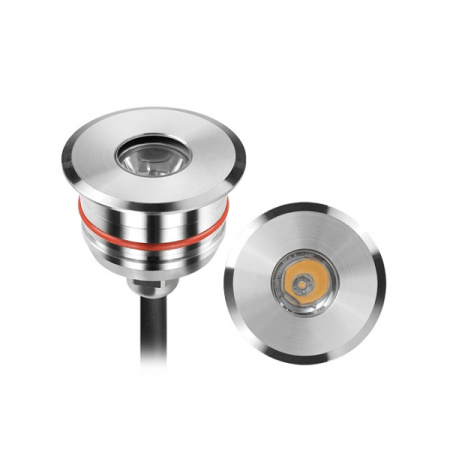

LED UnderwaterLight 1W narrow beam angle underwater light

534 viewers

SKU: UL-P-1011-2 Category:
Share:
  1. Product Size:

2.Electric Property:

Item No.UL-P-1011-2
Light Source1W CREE XPE LED chip
Input Voltage12VDC to 24VDC
Color temperatureCool white 6000K,Warm white 3000K
Beam angle11° 17° 25° 40° 60°
Lumens90lm to 95lm
CRI>80



  1. Specifications

1) Underground Light, also can be used as wall light, underwater light

2) Housing: Passivated 6063 aluminum.

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=4mm

5) Load capacity: 320kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Plastic

12) IP Rating: IP67

13) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
