Features
Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
O-ring PMQ silicon seal
Glass
Step Tempered glass. T=5mm
Lens
Optical lens, efficiency ≥85%
Power cable
Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m
Cable gland
IP-68 PG-7 copper with nickel-coated

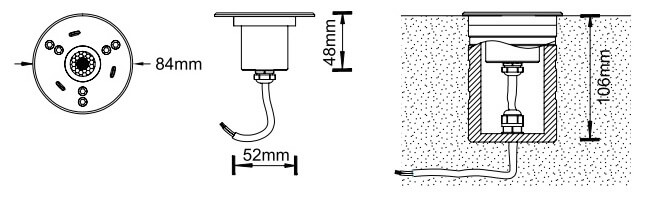

Product Size
Mounting Type
Reccessed mounted
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| SKU |
|---|
| WT-P-3006 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC12V | 6.5 | LED 1 x 6W | 300lm | 24°/38° | 3000K/6000K | Ra80 | ON/OFF, DALI, 1-10V | 07 |

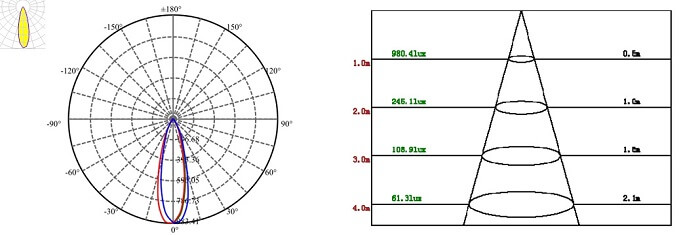

Light Distribution
