- Product Size:
- Electric Property:

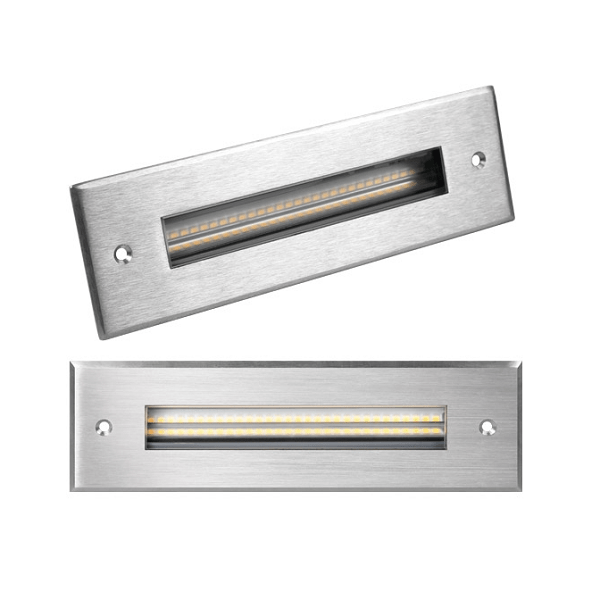

| Item No. | UL-P-C001 |
| Light Source | 30pcs of 2835 SMD LED chips |
| Power | 8W |
| Input Voltage | 100-245VAC |
| Color temperature | Warm White 3000K, Cool White 6000K |
| Beam angle | 120° & asymmetric 30° |
| Lumens | 330lm to 350lm |
| CRI | >80 |
- Specifications
1) Asymmetric lens design for anti-glare.
2) Linear Underground Light, also used it as step light, stair light, wall light
3) Housing: Passivated 6063 aluminum
4) Trim: Stainless steel 316L
5) Glass: Step style, Tempered glass: T=8mm,
6) Load capacity: 2000kgs, .
7) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m
8) Cable gland: PG7 cooper with nickel coated
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Passivated 6063 aluminum
12) IP Rating: IP67
13) Warranty: 3 years
- Lighting Distribution Curve:
- Illuminance Distance Curve:
