Features
Housing
12# Die-casting grey powder coated aluminum.T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover
SUS 316L stainless steel
Gasket
Molding shaped silicone seal
Glass
Step tempered clear glass. T=5mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-9 copper with nickel-coated

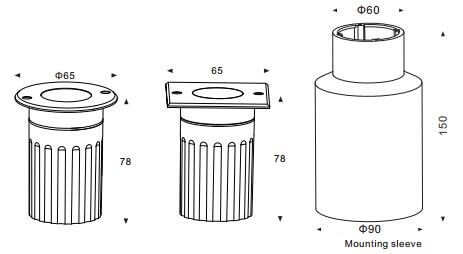

Product Size
![](https://www.lampviews.com/wp-content/uploads/2019/01/20190321-B2CAR0116-SZ.jpg)
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
Product Model |
UL-G-B2CAR0116 |
UL-G-B2CAR0118 |
Voltage |
Power |
Source |
Lumens |
Optics |
CCT |
CRI |
Control |
IK Rate |
DC24V |
3.6 |
LED 1 x 3W |
77lm |
30° |
3000K |
Ra80 |
ON/OFF, DALI, 1-10V |
08 |
DC24V |
3.5 |
LED 1 x 3W |
55lm |
30° |
RGB |
– |
DMX |
08 |

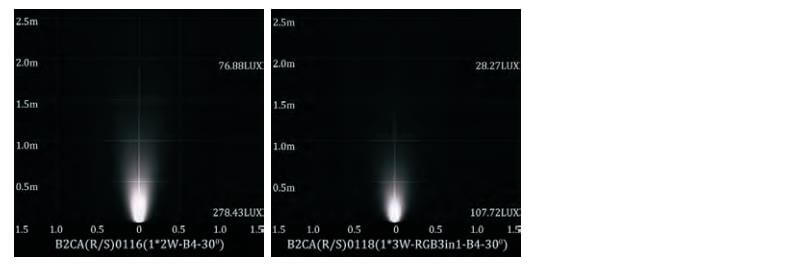

Light Distribution
![](https://www.lampviews.com/wp-content/uploads/2019/01/20190321-B2CAR0116-LD.jpg)
