Home Outdoor Lighting Uplight 3W mini Inground Light, 2 ways light output

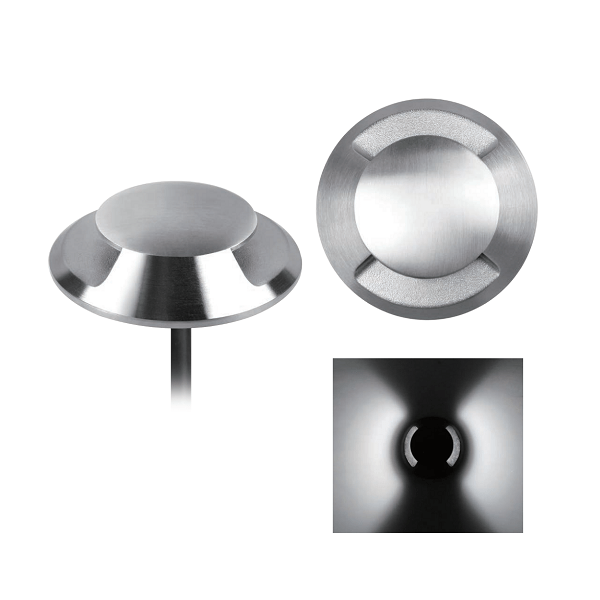

3W mini Inground Light, 2 ways light output

Item No.: UL-P-1021-0300-A-C2
Product Origin: China
CCT: 2700K3000K4000K6000K,R,G,B
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1021-0300-A-C2 Category:
  1. Product Size


  1. Technical Specification
1 LED Type and Quantity 4*0.75W Osram 3030
2 LED quantity in series connection*in-parallel connection 2*2
3 LED BIN VF=(6.0~6.2)V
4 CCT & CRI 2700K3000K4000K6000K,R,G,B Ra≥80
5 SDCM < 6 steps
6 Current for all LED 0.125A(DC24V)
7 Current for each pc LED 0.12A
1 Rated Input Voltage & Frequency DC24V
2 System Power 3W±10%
3 Control/Dimming ONOFF PWM
1 System Lumen Package(typical) 21 lm
2 System Efficacy(typical)lm/w 7 LM/W
3 Beam Angle 110*30°*2
Mechanical & packaging for front cover
1 Luminaire Size (L*W*H) 65×17 (mm) Diameter x Height
2 Weight per piece 0.145kgs
3 Packaging quantity 120
4 Packaging size 37.5*37.5*12.5CM
5 Gross weight KG) 17.5kg for NW, 18kg for GW
Material & Finishing
1 Luminaire Body material & color SS316 trim, Aluminium housing CNC machined
2 Material for Lens or Reflector PMMA
3 in conformity with Rohs or not? Yes
4 External cable size and length 1PC PVC cable,  2×0.35mm2, length is 0.3 meters
5 Mounting Sleeve/ Spike/ Others Screws
1 Surface/Recessed/Suspended/… Surface installation
1 Approbation CE
2 IP IP67
3 IK IK10
4 Lum Classification III
5 Working temp   -25℃~50℃
6 Life time in hours 50000h
7 Warranty years 3
  1. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Installation Drawing

  1. Selling Point

1. Nice Light Output, 360o light output

2. Easy to install, very thin, use screw to install it.

3. Marine grade stainless steel 316 cover & solid anodizing housing for anticorrossion, can be used near to sea.

4. Good quality, 3 years warranty
