2. Electric Property:
| Item No. | UL-P-1003-1 |
| Light Source | 3W, 1pc of 3 in 1 Taiwan LED chip |
| Input Voltage | 12VDC to 24VDC |
| Color temperature | RGB |
| Beam angle | 25° 45° 60° |
| Lumens | 110lm to 130lm |
| CRI | >80 |
3. Specifications

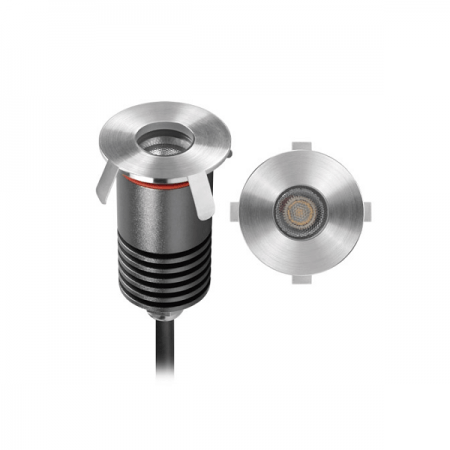

1) Underground Light, also can be used as wall light, down light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless steel 316L
4) Glass: Step type, tempered glass, T=4mm
5) Load capacity: 320kgs
6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m
7) Cable gland: PG7 cooper with nickel coated
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Passivated 6063 aluminum
12) IP Rating: IP67
13) Warranty: 3 years
4. Lighting Distribution Curve:
5. Illuminance Distance Curve:
