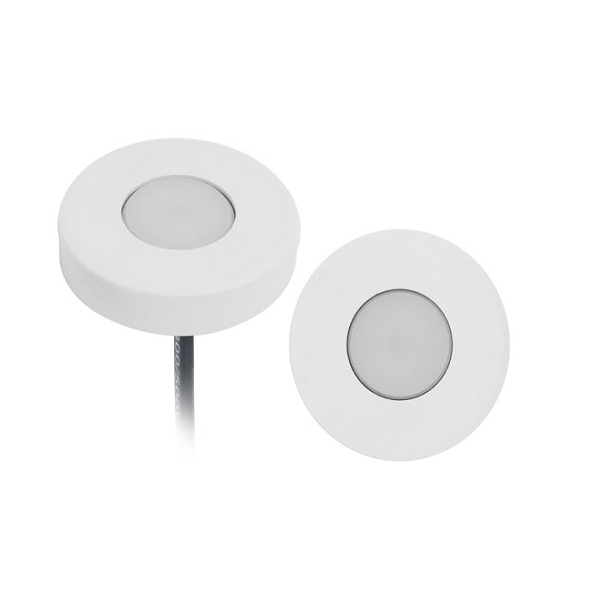

1.2W Mini Inground Light with competitive cost aluminum front cover

Item No.: UL-P-1014-0100-A-G
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1014-0100-A-G Category:
  1. Product Size:

  1. Technical Specification
UL-P-1014-0100-A-G LED
1 LED Type and Quantity 1pc of Osram 3030 SMD LED
2 LED quantity in series connection*in-parallel connection 1*1
3 LED BIN VF=(3.0~3.2)V
4 CCT & CRI 2700K/3000K/4000K/6000K Ra≥80
5 SDCM < 6 steps
6 Current for all LED 0.1A(DC24V)
7 Current for each pc LED 0.15A
1 Rated Input Voltage & Frequency DC24V
2 System Power 1.2W±10%
3 Control/Dimming ONOFF PWM
1 System Lumen Package(typical) 80~85 lm
2 System Efficacy(typical)lm/w 70 LM/W
3 Beam Angle 120°
Mechanical & packaging for front cover
1 Luminaire Size (L*W*H) Ø49×10.4 (mm) Diameter x length
2 Weight per piece 0.023 kgs
3 Packaging quantity 100
4 Packaging size 32.5*23.5*17cm
5 Gross weight KG) 3.3KG
Material & Finishing
1 Luminaire Body material & color Aluminum
2 Material for Lens or Reflector PMMA
3 in conformity with Rohs or not? Yes
4 External cable size and length PVC 0.3m 2×0.3mm2
5 Mounting Sleeve/ Spike/ Others Screws
1 Surface/Recessed/Suspended/… Surface installation
1 Approbation CE
2 IP IP67
3 IK IK06
4 Lum Classification III
5 Working temp   -40℃~70℃
6 Life time in hours 50000h
7 Warranty years 3
  1. Selling Point:

1) Can be used as Inground Light, Wall Light and Deck Light.

2) Osram LED chip.

3) Front cover: Flush anodized aluminum 6063 cover.

4) Housing: Solid Passivated 6063 aluminum

5) Power cable: PVC cable 2×0.3mm2, length is 0.3 meters

6) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

7) Operating temperature: -20 to 50 ℃

8) IP Rating: IP67

9) Warranty: 3 years

  1. Light Distribution Curve


5.Illuminance Distance Curve

6.Light Output
