- Product Size
- Technical Specification

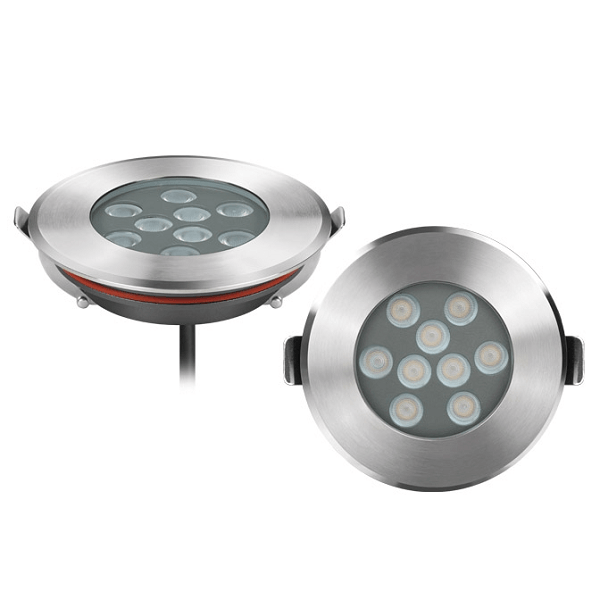

| Model No.: UL-P-9001-I-1 | ||
| LED | ||
| 1 | LED Type and Quantity | 9*1.3W Osram 3030 |
| 2 | LED quantity in series connection*in-parallel connection | 3*3 |
| 3 | LED BIN | VF=2.8~3.2V |
| 4 | CCT & CRI | 2700K/3000K/4000K/6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.375A(DC24V) |
| 7 | Current for each pc LED | 0.45A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V |
| 2 | System Power | 12W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 800 lm |
| 2 | System Efficacy(typical)lm/w | 88 LM/W |
| 3 | Beam Angle | 6/8/10/17/23/28/43/58/95/ Asymmetric15*15/ 15*20/15*25/ 15*30/15*38/15*45/15*60° |
| Mechanical & packaging | ||
| 1 | Luminaire Size (L*W*H) | Ø150×35 (mm) Diameter x length |
| 2 | Weight per piece | 0.98 kgs |
| 3 | Packaging quantity | 12 |
| 4 | Packaging size | 33.5*33.5*16cm |
| 5 | Gross weight KG) | 11.8KG |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Aluminium housing CNC machined, dark grey color |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | Glass | Tempered glass, T=8mm |
| 4 | Loading Capacity | 2000kgs |
| 5 | In conformity with Rohs or not | Yes |
| 6 | External cable size and length | 1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2 |
| 7 | Mounting Sleeve/ Spike/ Others | Passivated (Anodizing) Aluminum CNC machined. Dark grey. Or PVC |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Recessed installation |
| 2 | cut-out size for on ground | Φ 135mm |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK08 |
| 4 | Lum Classification | III |
| 5 | Working temp | -40℃～70℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Selling Point:
1) Front cover: Stainless Steel 316L or passivated aluminum.
2) Housing: Extruded Passivated 6063 aluminum
3) Power cable: Rubber cable of neoprene material, H05RN-F, length is 1 meters
4) Driver: Constant current output, Rubycon cap, can be used under very low temperature.
5) Operating temperature: -40 to 70 ℃
6) IP Rating: IP67
7) Warranty: 3 years
- Light Distribution Curve
- Illuminance Distance Curve
