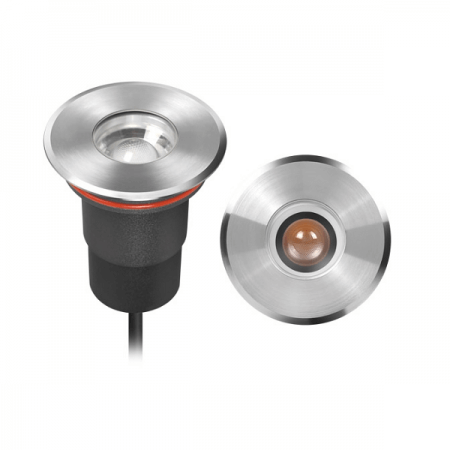

8W Zoomable Inground Light

585 viewers

Item No.: UL-P-8W-COB-J
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT:  2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-8W-COB-J Category:
Share:
  1. Product Size



  1. Technical Specification
UL-P-8W-COB-J
1LED Type and Quantity1*8W CREE CXA1304
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=9V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.7A
7Current for each pc LED0.7A
Electrical\electronic
1Rated Input Voltage & FrequencyDC12V/DC24V
2System Power8W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)190LM(Small beam angle)/550LM(Big beam angle)
2System Efficacy(typical)lm/w25LM/W(small beam angle)   70LM/W(big beam angle)
3Beam AngleZoom 15° to 50° adjustable
Mechanical & packaging
1Luminaire Size (L*W*H)Φ80*128mm. The height of mounting sleeve is 125mm.
2Weight per piece0.8 kgs
3Packaging quantity18
4Packaging size47.5*35.5*19cm
5Gross weight KG)15.5KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Anodized aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable, neoprene material,H05RN-F 2x1mm2. The length is 1 meter.
5Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey.
6GlassTempered glass, thickness is 6mm
7Loading Capacity500kg
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 70mm
Classification
1ApprobationCE
2IPIP67
3IKIK08
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Small Beam Angle Light Output

  1. Big beam angle light output
