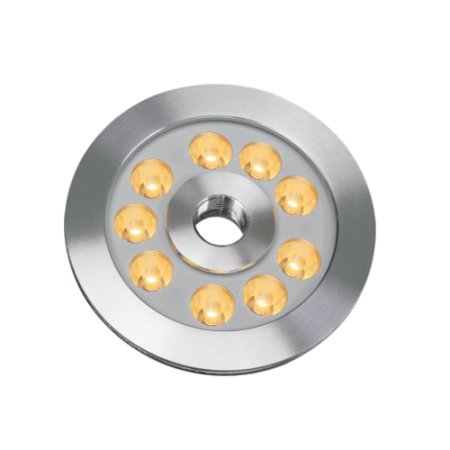

WT-G-B4SB0916

WT-G-B4SB0916, fountain LED light, can be single color or RGB, work at Safe voltage DC24V, central ejective and has completely stainless teel SUS 316L housing, Good IP68 waterproof degree, specially suitable for seaside environment.It has been used in various in fountains in parks and hotles, and is highly appreciated for its various attributes such as long functional life and superior finishing.

Category:
Share:

Features


Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
EPDM gasket
Glass
Step Tempered glass. T=8mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated
Product Size

Mounting Type
Fixed on water jet pipe
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years

Characteristics


Product Model
WT-G-B4SB0916
WT-G-B4SB0918
VoltagePowerSourceLumensOpticsCCTCRIControlIK Rate
DC12V21LED 9 x 2W800lm25°3000KRa80ON/OFF, DALI, 1-10V09
DC12V25.2LED 9 x 2W760lm25°RGBDMX09

Light Distribution
