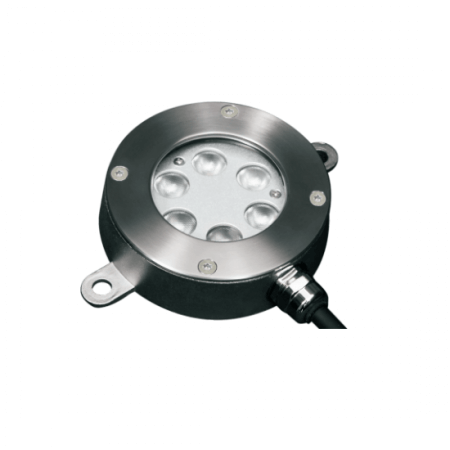

WT-G-B4B0616

This is a surface-mounted underwater lamp, good stainless steel body with easy-to-mount design makes it easy to use in pools and fountains, providing safe, yet interesting and varied lighting effects for different pool areas and zones in the facilities.

Category:
Share:

Features


Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
EPDM gasket
Glass
Step Tempered glass. T=8mm
Lens
Optical lens, efficiency ≥85%

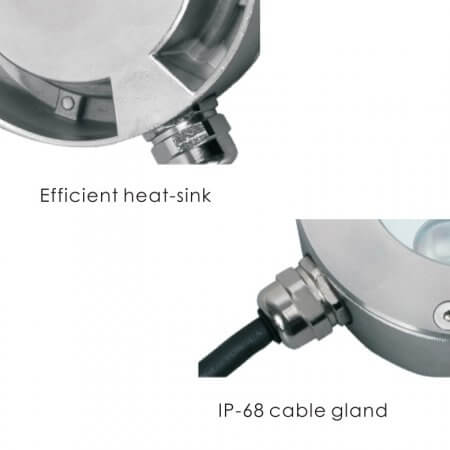

Cable gland
IP-68 PG-11 copper with nickel-coated
Product Size

Mounting Type
Surface mounted
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years

Characteristics


Product Model
WT-G-B4B0616
WT-G-B4B0618
VoltagePowerSourceLumensOpticsCCTCRIControlIK Rate
DC24V13LED 6 x 2W520lm25°3000KRa80ON/OFF, DALI, 1-10V08
DC24V16.8LED 6 x 2W428lm25°RGBDMX08

Light Distribution
