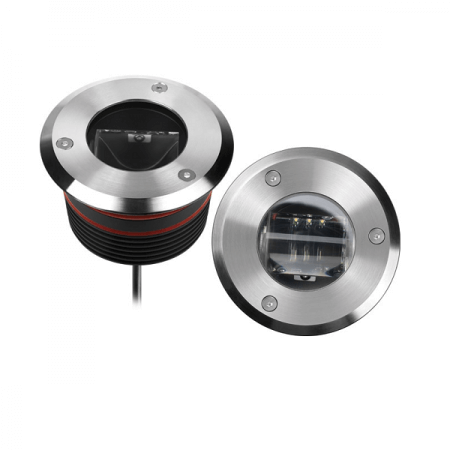

6W Window light output Inground Light

539 viewers

Item No.: UL-P-3001
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT:  2700K\3000K\4000K\6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-3001 Category:
Share:
  1. Product size

  1. Technical Specification
UL-P-3001
1LED Type and Quantity3*2W CREE XPE
2LED quantity in series connection*in-parallel connection3*1
3LED BINVF=(3.0~3.2)V
4CCT & CRI2700K\3000K\4000K\6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.25A(DC24V)
7Current for each pc LED0.5A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power6W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)110lm
2System Efficacy(typical)lm/w18 LM/W
3Beam AngleOne beam with 2°+2°+2° (similar with a door)°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)116×72(mm) Diameter x Height
2Weight per piece1.24kgs
3Packaging quantity12
4Packaging size38*26*24CM
5Gross weight KG)15.9kg
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined
2Material for Lens or ReflectorAcryl
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable of neoprene material, H05RN-F 2×1.0mm², the length is 1 meter
5GlassTempered Glass, thickness is 8mm
6Loading Capacity2000kgs
7Mounting Sleeve/ Spike/ OthersSolid passivated (Anodizing) Aluminum CNC machined.Dark grey
Mounting
1Surface/Recessed/Suspended/…Recessed installation
Classification
1ApprobationCE
2IPIP67
3IKIK09
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Light Output
