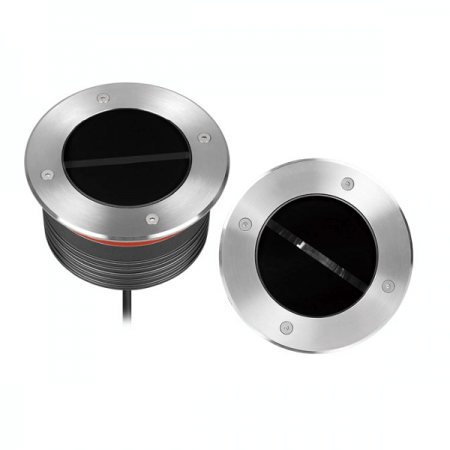

10W Window Light Nice Light Ouput Inground Light like window

539 viewers

Item No.: UL-P-3001-B
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT:  2700K\3000K\4000K\6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-3001-B Category:
Share:
  1. Light Product

  1. Technical Specification
UL-P-3001-B
1LED Type and Quantity5*2W CREE XPE
2LED quantity in series connection*in-parallel connection5*1
3LED BINVF=(3.0~3.2)V
4CCT & CRI2700K\3000K\4000K\6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.4A(DC24V)
7Current for each pc LED0.7A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power10W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)160lm
2System Efficacy(typical)lm/w16 LM/W
3Beam AngleOne beam with 2°+2°+2° (similar with a door)°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)116×72(mm) Diameter x Height
2Weight per piece1.24kgs
3Packaging quantity8
4Packaging size28*28*24.5CM
5Gross weight KG)11kg
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable of neoprene material, H05RN-F 2×1.0mm², the length is 1 meter
5Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined.Dark grey
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK10
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve



4.Illuminance Distance Curve

5.Lighting Output

6.Selling Point

Comparing with other underground light supplier, our products have the special feature.

1) It is passivated. It is similar as anodizing, but it is a strong anodizing and eco-friendly, meet the standard of RoHS.

With passivated, the surface of housing will be smooth and elegant, not so easy to paint-off, and will have the anti-corrosive protection film.

2) The front cover is marine grade stainless steel SS316, not 304.

So that the product can be used near from the sea.

  1. QA

We pay much attention to the quality of the product. Will do 100% waterproof function test two times. After two times, will make a final waterproof function test according to AQL standard.
