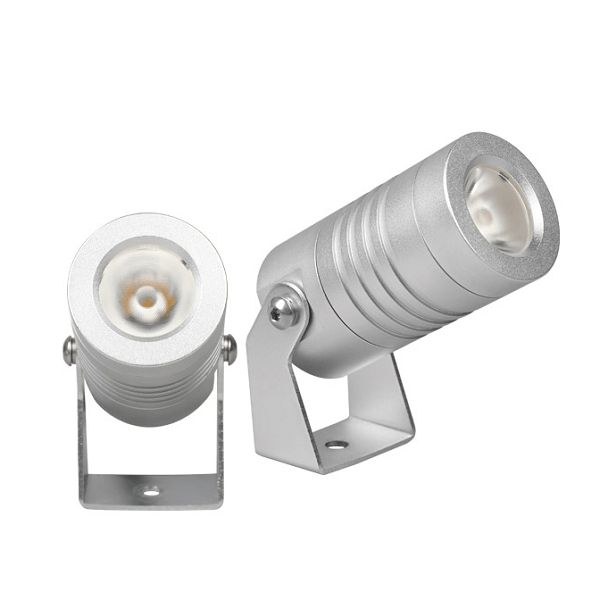

Waterproof LED Wall Light with CREE LED chip

542 viewers

SKU: WL-P-1010 3W Category:
Share:
  1. Product Size:

  1. Electronic Property:
Item No.(UL-P-1010 3W)          WL-P-1010 3W
Light Source1x3W CREE XPE LED chip
Input Voltage12VDC to 24VDC
Color temperatureCool white 6000K,Warm white 3000K
Beam angle20°, 30°, 40°, 50°, 60°
Lumens110lm to 130lm



  1. Specifications

1) Garden Light with spike, also can be used as wall with round base

2) Housing: Passivated 6063 aluminum.

3) Glass: Step type, tempered glass, T=2mm

4) Load capacity: 220kgs

5) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

6) Cable gland: PG7 cooper with nickel coated

7) Gasket: O-ring PMQ silicon seal

8) Driver: Constant current output

9) Operating temperature: -20 to +60 ℃

10) Mounting Method: Plastic Spike or Stainless Steel round base

11) IP Rating: IP67

12) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
