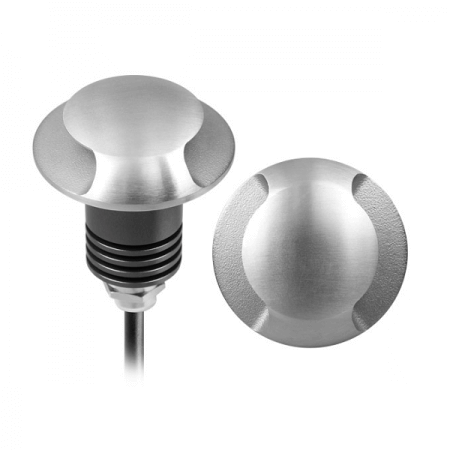

3W Truck drive over light Inground Light

574 viewers

Item No.: UL-P-1006-2
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K\3000K\4000K\6000K,R,G,B
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1006-2 Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-1006-2
1LED Type and Quantity1*3W CREE XPE
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=(3.0~3.2)V
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 6 steps
6Current for all LED0.125A(DC24V)
7Current for each pc LED0.7A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power3W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)20 lm
2System Efficacy(typical)lm/w6.5LM/W
3Beam Angle2*100°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)65×75 (mm) Diameter x Height
2Weight per piece0.34kgs
3Packaging quantity40
4Packaging size43*25*28CM
5Gross weight KG)14.6
Material & Finishing
1Luminaire Body material & colorSS316 trim, Anodizing Aluminium 6063 housing, CNC machined
2Material for Lens or ReflectorAcrylic
3in conformity with Rohs or not?Yes
4External cable size and length1PC of neoprene cable,  2×1.0mm², length is1.0 meters
5Mounting Sleeve/ Spike/ OthersAnodizing Aluminum mounting sleeve, CNC machined.
Mounting
1Surface/Recessed/Suspended/…Recessed installation
Classification
1ApprobationCE
2IPIP67
3IKIK10
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Light Output
