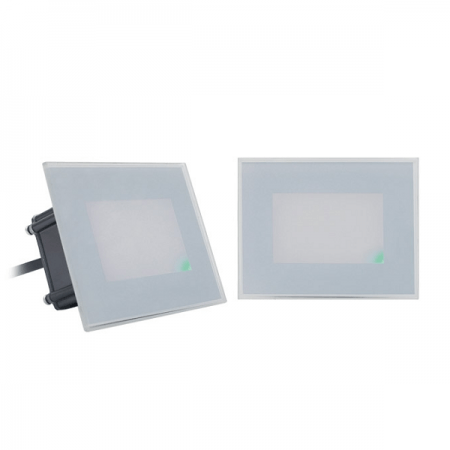

Touch on and touch off dim up and dim down LED Wall Light 4W

543 viewers

SKU: Touch on and touch off WL-P-001 Category:
  1. Product Size:

2.Electric Property:

Item No.(Touch on and touch off SP-P-001)

Touch on and touch off   WL-P-001

Light Source4W 30pcs of 2835 SMD LED chips
Input Voltage12VDC, 24VDC or 220VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle120°
Lumens100lm to 120lm


  1. Specifications

1) The light can touch on and touch off.

2) The light can dim up and dim down.

3)  Outdoor Wall Light, also used it as step light, stair light

4) Housing: Passivated 6063 aluminum

5) Front cover: Tempered glass, T=4mm

6) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

7) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

8) Cable gland: PG7 cooper with nickel coated

9) Gasket: O-ring PMQ silicon seal

10) Driver: Constant current output

11) Operating temperature: -20 to +60 ℃

12) Mounting sleeve: Passivated 6063 aluminum

13) IP Rating: IP65

14) Warranty: 3 years

  1. IES File:

  1. Illuminance-distance Curve:
