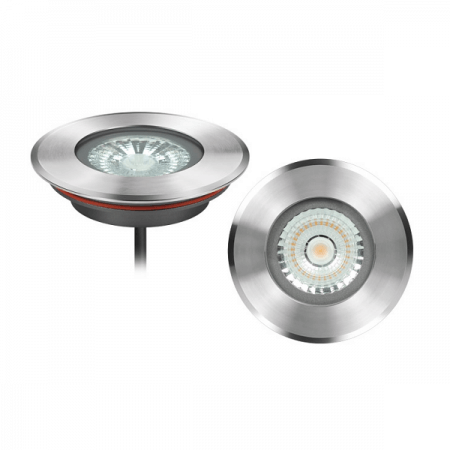

12W Super thin COB Inground Light

595 viewers

Item No.: UL-P-12W-COB-I
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-12W-COB-I Category:
Share:



Model No.: UL-P-12W-COB-I
LED
1LED Type and Quantity1*12W CREE CXA1507
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=18V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.5A(DC24V)
7Current for each pc LED0.55A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power12W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)550 lm
2System Efficacy(typical)lm/w45 LM/W
3Beam Angle10°, 20° 30°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø150×38 (mm) Diameter x length
2Weight per piece0.98 kgs
3Packaging quantity12
4Packaging size33.5*33.5*16cm
5Gross weight KG)12.8KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3GlassTempered glass, T=8mm
4Loading Capacity2000kgs
5In conformity with Rohs or notYes
6External cable size and length1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2
7Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey. Or PVC
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 135mm
Classification
1ApprobationCE
2IPIP67
3IKIK08
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3



  1. Selling Point:

1) Thin Inground Light, very thin, no need to dig deep hole.

2) COB LED chip, send out more even light.

3) Front cover: Stainless Steel 316L or passivated aluminum.

4) Housing: Extruded Passivated 6063 aluminum

5) Power cable: Rubber cable of neoprene material, H05RN-F, length is 1 meters

6) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

7) Operating temperature: -40 to +70 ℃

8) IP Rating: IP67

9) Warranty: 3 years
