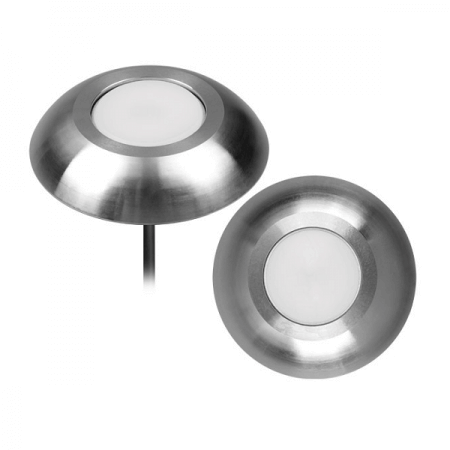

1W stainless steel step light Inground Light

591 viewers

Item No.: UL-P-1014-0100-C-A
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1014-0100-C-A Category:
  1. Product Size:

2.Technical Specification

1LED Type and Quantity1*1.2W/1*1.7W
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=(6.0~6.2)V
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 5 steps
6Current for all LED0.1A(1.2W)/0.18A(1.7W)  DC24V
7Current for each pc LED0.15A(1.2W)/0.22A(1.7W)
1Rated Input Voltage & FrequencyDC12V/24V
2System Power1.2W±10%
3Control/DimmingON\OFF PWM
1System Lumen Package(typical)80~85lm
2System Efficacy(typical)lm/w71 LM/W
3Beam Angle120°
Mechanical & packaging
1Luminaire Size (L*W*H)40×10.2 (mm) Diameter x Height
2Weight per piece0.073 kgs
3Packaging quantity100
4Packaging size40.5*32*30CM
5Gross weight KG)8.3KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey or grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable 1M H05RN-F 2x1mm square
5Mounting Sleeve/ Spike/ OthersScrews
1Surface/Recessed/Suspended/…Surface installation
2cut-out size for on ground
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3


  1. Selling Point:

1) Mini waterproof underground light, wall light and step light.

2) Underground Light, also call it as inground light, can be used as wall light, deck light.

3) Housing: Passivated 6063 aluminum

4) Front cover: Stainless Steel 316L or passivated aluminum.

5) Power cable: PVC, length is 1 meters

6) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

7) Operating temperature: -40 to +70 ℃

8) IP Rating: IP67

9) Warranty: 3 years

  1. Light Distribution Curve

5.Light Distance Curve

6.Light Application
