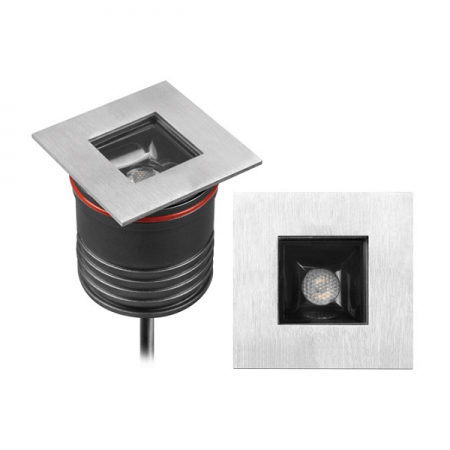

5W square Inground Light

538 viewers

Item No.: UL-P-1020
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1020 Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-1020
1LED Type and Quantity1*5W LG LED Chip
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=(3.0~3.3)V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.2A(DC24V)
7Current for each pc LED1A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power5W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)250 lm
2System Efficacy(typical)lm/w50 LM/W
3Beam AngleReflector 12°/34°/48° or optianal Lens10°/24°/36°/48°/10*35°
Mechanical & packaging
1Luminaire Size (L*W*H)65x65x65(mm) Width x Length x Height, the height of mounting sleeve is 100mm.
2Weight per piece0.45 kgs
3Packaging quantity24
4Packaging size44.5*35.5*16.5 cm
5Gross weight KG)11.8KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3GlassStepped tempered glass, thickness   is 6mm
4in conformity with Rohs or not?Yes
5External cable size and length1PC rubber cable, neoprene material,H05RN-F 2x1mm2. The length is 1 meter.
6Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey.
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 61mm
Classification
1ApprobationCE
2IPIP67
3IKIK06
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

4.Lux Distance Curve

5.Light Output
