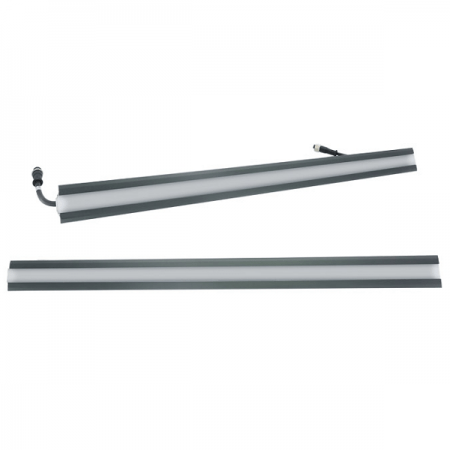

12W seamless connection High Power Linear LED Inground Light

527 viewers

Item No.: UL-P-C008
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 3000K, 6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-C008 Category:
Share:
  1. Product Size:

2.Electric Property:

Item No.UL-P-C008
Light Source198pcs of 2835 SMD LED chips
Power12W
Input Voltage24VDC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle120°
Lumens500lm to 550lm
CRI>80



  1. Specifications

1) Linear Underground Light, also used it as step light, stair light, wall light

2) Housing: Passivated 6063 aluminum

3) Trim: Passivated 6063 aluminum

4) Cover: Without glass, but with strong PMMC diffuser

5) Load capacity: 2000kgs

6) Power cable: Neoprene material, H05RN-F 2×0.75mm2 with waterproof connector

7) Driver: Constant current output

8) Operating temperature: -20 to +60 ℃

9) Mounting sleeve: Passivated 6063 aluminum

10) IP Rating: IP67

11) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
