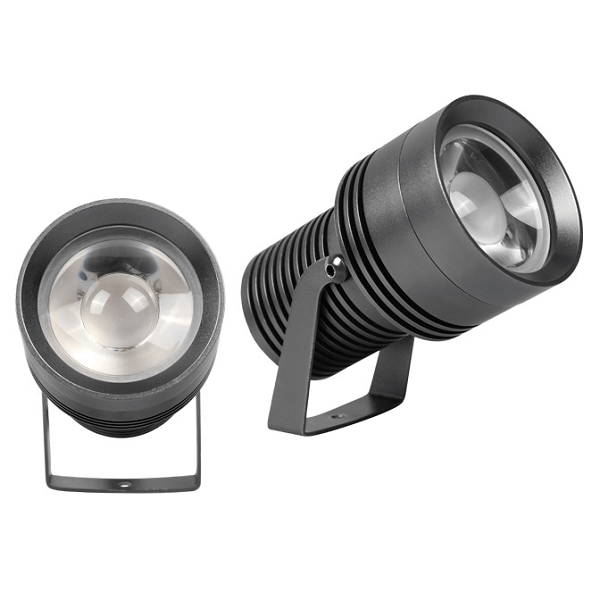

RGBW Garden Spot Light 12W

536 viewers

SKU: SP-P-1012 RGBW Category:
  1. Product Size:

2.Electronic Property:

Item No.(UL-P-1012 RGBW)   SP-P-1012 RGBW
Light Source1pc of CREE COB LED chip
Input Voltage24VDC
Beam angle30°
Lumens330lm(all LEDs on)


  1. Specifications

1) Garden Light with spike, also can be used as wall light with round base

2) Housing: Passivated 6063 aluminum.

3) Glass: Tempered glass, T=3mm

4) Load capacity: 220kgs

5) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

6) Cable gland: PG7 cooper with nickel coated

7) Gasket: O-ring PMQ silicon seal

8) Driver: Constant current output

9) Operating temperature: -20 to +60 ℃

10) Mounting Method: Plastic Spike or Stainless Steel round base

11) IP Rating: IP67

12) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
