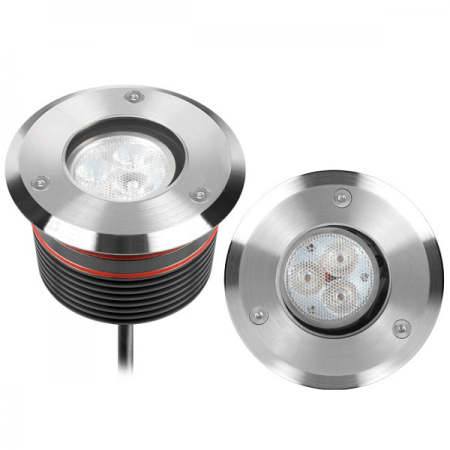

12W RGBW LED Inground Light

573 viewers

Item No.: UL-P-3004 RGBW
Product Origin: China
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-3004 RGBW Category:
  1. Product Size:



  1. Electric Property:
Item No.UL-P-3004 RGBW
Light Source12W, 4pcs of 3 in 1 RGB LED chip
Input Voltage12VDC
RGBSuit for DMX512
Beam angle25° 45°
Lumens410m(All LEDs on)



  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=8mm

5) Load capacity: 2000kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m

7) Cable gland: PG9 IP67

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
