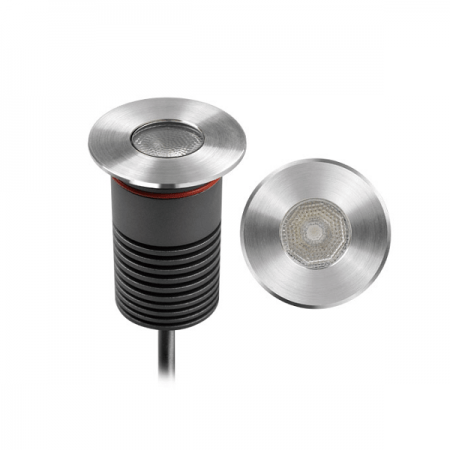

3W RGB LED Inground Light

550 viewers

Item No.: UL-P-1003 RGB-1
Product Origin: China
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1003 RGB-1 Category:
  1. Product Size:

  1. Electric Property:
Item No.UL-P-1003 RGB-1
Light Source3W, 1x3W CREE XPE LED chip
Input Voltage12VDC to 24VDC
Suit forDMX512
Luminous Fux(lm)95lm (All LEDs on)
Beam angle20° 40° 60°


  1. Specifications

1) Underground Light, also can be used as wall light, down light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=4mm

5) Load capacity: 320kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

  1. IES File:


  1. Illuminance-distance Curve:

  1. Light Output:
