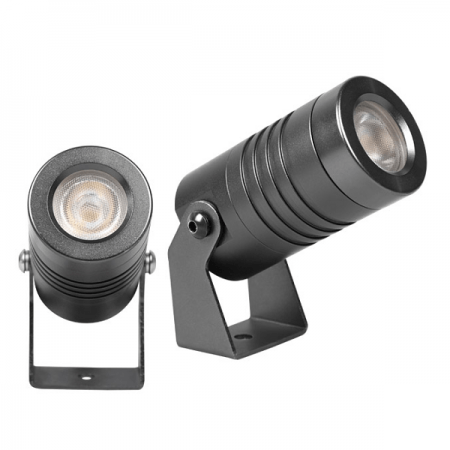

Garden Spot Light/ RGB landscape light 6W

534 viewers

SKU: SP-P-1010 RGB 6W Category:
Share:
  1. Product Size

  1. Technical Specification
(UL-P-1010 RGB 6W)       SP-P-1010 RGB 6W
1LED Type and Quantity1 PC 9W RGB SMD5050 LED
2LED quantity in series connection*in-parallel connection1*1
3CCT & CRIRGB
4Current for all LED0.5Ax3
5Current for each pc LED0.5Ax3
Electrical\electronic
1Rated Input Voltage & FrequencyDC12V
2System Power6W±10%
3ControlON\OFF PWM
Optical
1System Lumen Package(typical)200 lm for all leds on
2System Efficacy(typical)lm/w33 LM/W
3Beam Angle25° 38°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)42×75 (mm) Diameter x Height
2Weight per piece0.38kgs
3Packaging quantity30
4Packaging size49*25*16CM
5Gross weight KG)12.5kg
Material & Finishing
1Luminaire Body material & colorPassivated (Strong Anodized) Aluminium 6063housing CNC machined
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC of outdoor cable, neoprene material, H05RN-F 3×1.0mm², length is 1 meter
5Mounting Sleeve/ Spike/ OthersScrews/Spike/Round Base
6GlassTempered glass, thickness is 3mm
7Loading Capacity220kgs
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK04
4Lum ClassificationI
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3



  1. Selling Point

1) Passivated (Strong Anodized) Aluminum 6063, CNC machined.

2) Nice quality driver inside.

3) 3 years warranty.

4) 8-10 years professional sales and technicians to serve you.

  1. Light Distribution Curve

5.Light Output
