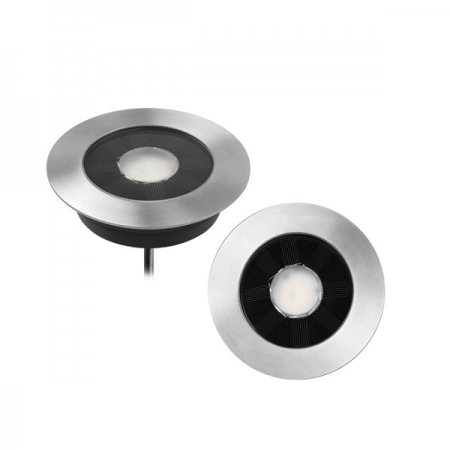

1W Recessed Solar Light, Inground Light

559 viewers

Item No.: UL-P-6001-0100-A Solar LED
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K\3000K\4000K\6000K,R,G,B
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-6001-0100-A Solar LED Category:
Share:
  1. Product Size:

  1. Technical Specification
UL-P-6001-0100-A Solar LED
1LED Type and Quantity8*0.125W    2835  LED
2LED quantity in series connection*in-parallel connection1*8
3LED BINVF=(3.0~3.2)V
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 6 steps
6Current for all LED0.3A
7Current for each pc LED0.04A
Electrical\electronic
1System Power1W±10%
2Control/DimmingON\OFF SOLAR
Optical
1System Lumen Package(typical)60~70 lm
2System Efficacy(typical)lm/w70 LM/W
3Beam Angle120°
Mechanical & packaging
1Luminaire Size (L*W*H)150×38 (mm) Diameter x Height
2Weight per piece1.36 kgs
3Packaging quantity20
4Packaging size33.5*33.5*32.5CM
5Gross weight KG)28.2KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable 1M H05RN-F 2x1mm2
5Mounting Sleeve/ Spike/ OthersPVC Mounting Sleeve
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ138 mm
Classification
1ApprobationCE
2IPIP67
3IKIK07
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3
  1. Selling Point:

1) IP67 waterproof underground light, wall light and step light.

2) Underground Light, also call it as inground light, can be used as wall light, deck light.

3) Housing: Passivated 6063 aluminum

4) Front cover: Stainless Steel 316L.

5) Power cable: Rubber cable, material is neoprene,H05RN-F 1.0mm2, length is 1 meters

6) Driver: Constant current output, Rubycon cap, can be used under very low temperature of -40℃ .

7) Operating temperature: -40 to +70 ℃

8) IP Rating: IP67

9) Warranty: 3 years

  1. Light Output
