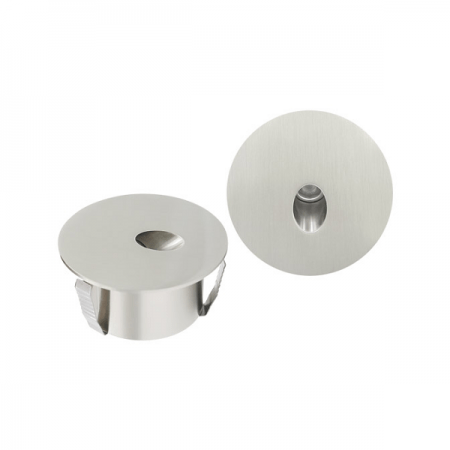

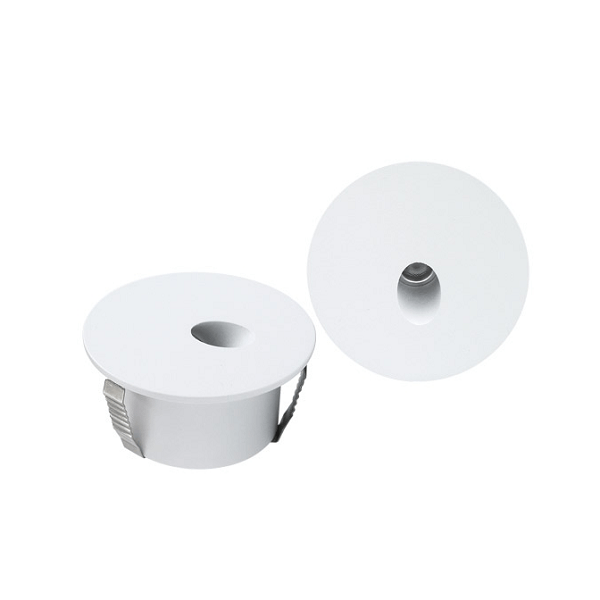

Outdoor Wall Light Corner Light

547 viewers

SKU: WL-P-006 Category:
Share:
  1. Product Size:

  1. Electric Property:
Item No.(SP-P-006)    WL-P-006
Light Source1pc of CREE or Osram LED chip
Power1.2W
Input Voltage12VDC/24VDC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle30°
Lumens80lm
CRI>80



  1. Specifications

1) Outdoor Wall Light, also used it as step light, stair light

2) Housing: Passivated 6063 aluminum

3) Front cover: Polished Chrome, Satin Nickel, or powder coated in white color aluminum

4) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

7) Gasket: O-ring PMQ silicon seal

8) Driver: Constant current output

9) Operating temperature: -20 to +60 ℃

10) Mounting sleeve: Plastic

11) IP Rating: IP65

12) Warranty: 3 years

  1. IES File:

  1. Illuminance-Distance Curve:
