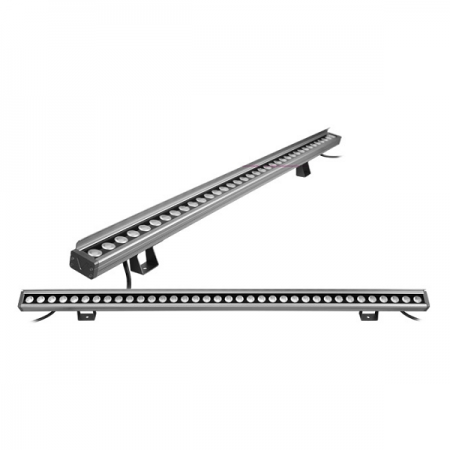

LED Wall Washer Light 36W
- Product Size
- Technical Specification
| LWW-P-3601-3600-B |
| 1 |
LED Type and Quantity |
36*1W Osram 3030 |
| 2 |
LED quantity in series connection*in-parallel connection |
3*12 |
| 3 |
LED BIN |
VF=(6.0~6.2)V |
| 4 |
CCT & CRI |
2700K/3000K/4000K/6000K Ra≥80 |
| 5 |
SDCM |
< 6 steps |
| 6 |
Current for all LED |
1.5A |
| 7 |
Current for each pc LED |
0.15A |
| Electricalelectronic |
| 1 |
Rated Input Voltage & Frequency |
DC24V |
| 2 |
System Power |
36W±10% |
| 3 |
Control/Dimming |
ONOFF PWM |
| Optical |
| 1 |
System Lumen Package(typical) |
2700 lm |
| 2 |
System Efficacy(typical)lm/w |
75 LM/W |
| 3 |
Beam Angle |
12/24/30/40/60/10*30/15*40° |
| Mechanical & packaging for front cover |
| 1 |
Luminaire Size (L*W*H) |
1000*45*44 (mm) L x W x H |
| 2 |
Weight per piece |
1.7 kgs |
| 3 |
Packaging quantity |
9 |
| 4 |
Packaging size |
108*30*25cm |
| 5 |
Gross weight KG) |
16KG |
| Material & Finishing |
| 1 |
Luminaire Body material & color |
Passivated (Anodizing) Aluminum, Dark grey |
| 2 |
Material for Lens or Reflector |
PMMA |
| 3 |
in conformity with Rohs or not? |
Yes |
| 4 |
External cable size and length |
2pcs of rubber cable of neoprene material, with waterproof connector at both end, 2x 1.5mm² |
| 5 |
Mounting Sleeve/ Spike/ Others |
Bracket |
| Mounting |
| 1 |
Surface/Recessed/Suspended/… |
Surface installation |
| Classification |
| 1 |
Approbation |
CE |
| 2 |
IP |
IP65 |
| 3 |
IK |
IK07 |
| 4 |
Lum Classification |
III |
| 5 |
Working temp |
-25℃～50℃ |
| 6 |
Life time in hours |
50000h |
| 7 |
Warranty years |
3 |
- Light Distribution Curve
- Illuminance Distance Curve
