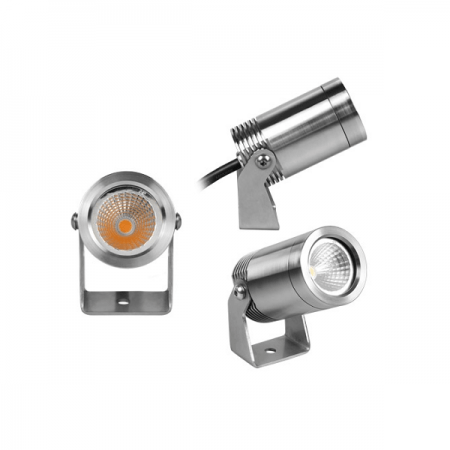

LED UnderwaterLight Surface mounted pool light 5W

586 viewers

SKU: SL-P-1010 5W Category:
Share:
  1. Product Size

  1. Technical Specification
SL-P-1010 5W
LED
1LED Type and Quantity1*5W CREE COB LED
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=9V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.04A
7Current for each pc LED0.38A
Electrical\electronic
1Rated Input Voltage & FrequencyDC12V
2System Power5W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)350 lm
2System Efficacy(typical)lm/w70 LM/W
3Beam Angle15° 25° 38°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø42×77 (mm) Diameter x length
2Weight per piece0.51 kgs
3Packaging quantity30
4Packaging size49*25*16cm
5Gross weight KG)16KG
Material & Finishing
1Luminaire Body material & colorMarine Grade Stainless Steel SS316 trim, housing. Stainless steel color.
2Material for Lens or ReflectorReflector
3GlassTempered glass, T=2mm
4Loading Capacity220kgs
5In conformity with Rohs or notYes
6External cable size and length1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2
7Mounting Sleeve/ Spike/ OthersSpike, round base, screw for choices
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK04
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3

  1. Selling Point:

1) Surface underwater light, pool light.

2) COB LED chip, send out more even light.

3) Front cover & Housing: Marine grade stainless steel SS316.

4) Power cable: Rubber cable of neoprene material, H05RN-F 1.0mm²,  the length of Length can be DIY according to request’s request.

5) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

6) Operating temperature: -25 to +50 ℃

7) IP Rating: IP68

8) Warranty: 3 years

9) Experienced sales and technicians to serve you.

  1. Light Distribution Curve

  1. Illuminance Distance Curve
