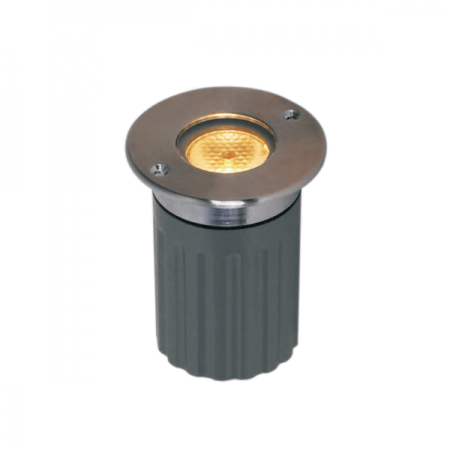

LED Underground UpLight, DC24V 1x2W IP67, Die-casting Aluminium Body
582 viewersItem No.: UL-G-B2CAR0116
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
Color: Single Color / RGB
Shipping Port: Zhongshan
Lead Time: 7-15 days
You Might Also Need
Features
Housing
12# Die-casting grey powder coated aluminum.T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover
SUS 316L stainless steel
Gasket
Molding shaped silicone seal
Glass
Step tempered clear glass. T=5mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-9 copper with nickel-coated
Product Size
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| UL-G-B2CAR0116 |
| UL-G-B2CAR0118 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 2.6 | LED 1 x 2W | 77lm | 30° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 08 |
| DC24V | 3.5 | LED 1 x 3W | 55lm | 30° | RGB | – | DMX | 08 |
Light Distribution
