Features
Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
EPDM gasket
Glass
Step Tempered glass. T=8mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated

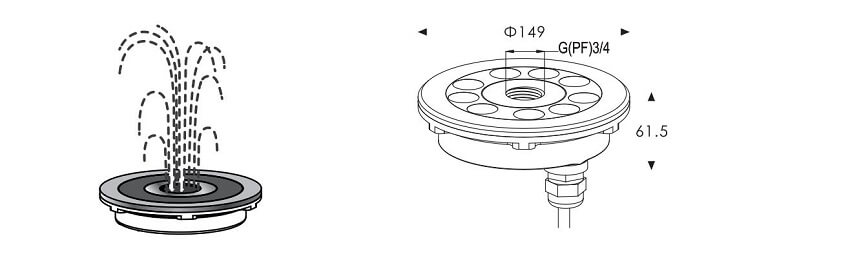

Product Size
Mounting Type
Fixed on water jet pipe
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| WT-G-B4SB0916 |
| WT-G-B4SB0918 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC12V | 21 | LED 9 x 2W | 800lm | 25° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 09 |
| DC12V | 25.2 | LED 9 x 2W | 760lm | 25° | RGB | – | DMX | 09 |

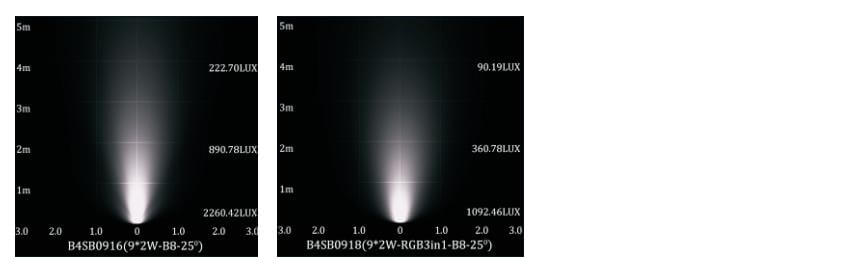

Light Distribution
