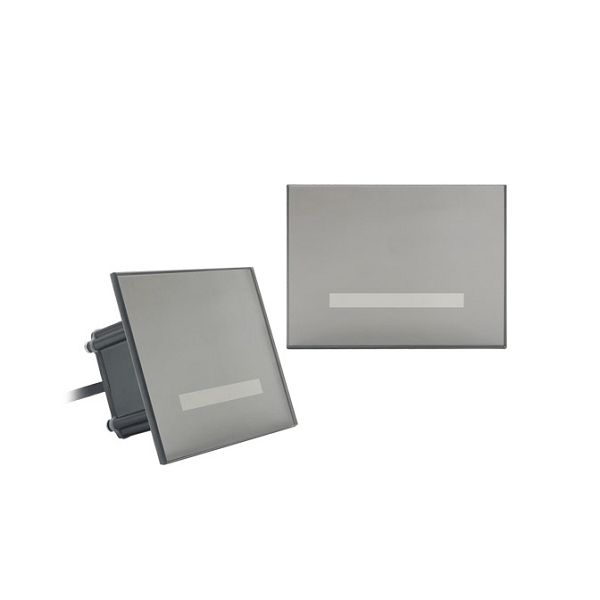

LED Corner Light Wall Light

534 viewers

SKU: WL-P-009 Category:
  1. Product Size:

  1. Electric Property:
Item No.(SP-P-009)  WL-P-009
Light Source8pcs of CREE LED chip or 15pcs of 2835 led chip
Input Voltage100-245VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle 45° one side, the other side is 120°
Power6W or 3W
Lumens8lm or 2lm


  1. Specifications

1) Outdoor Wall Light, also used it as step light, stair light

2) Housing: Passivated 6063 aluminum

3) Front cover: Tempered glass, T=4mm

4) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

5) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

6) Driver: Constant current output

7) Operating temperature: -20 to +60 ℃

8) Mounting box: Passivated 6063 aluminum

9) IP Rating: IP65

10) Warranty: 3 years

  1. IES File:

  1. Illuminance-distance Curve:

  1. Light Output:
