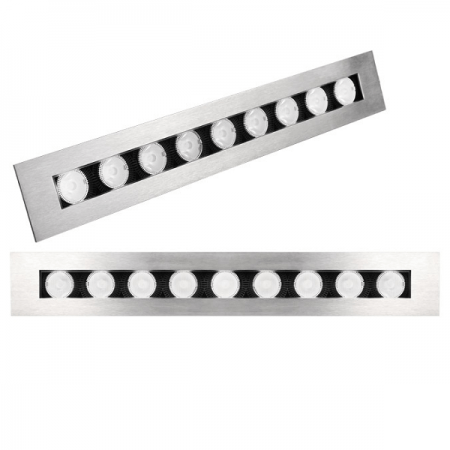

24W 48W IP68 Linear Inground Light

536 viewers

Item No.: UL-P-C010-A/ UL-P-C011-A
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-C010-A/ UL-P-C011-A Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-C010-A/ UL-P-C011-A
1LED Type and Quantity9*2.6W CREE XPE / 18*2.7W CREE XPE
2LED quantity in series connection*in-parallel connection3*3 / 3*6
3LED BINVF=(3.0~3.2)V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED1A / 2A(DC24V)
7Current for each pc LED0.65A/0.7A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power24W/48W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)1600~1700 lm / 3000~3200lm
2System Efficacy(typical)lm/w66 LM/W
3Beam Angle5°8°12°24°36°60° or Oval lens 10×30̊
Mechanical & packaging
1Luminaire Size (L*W*H)550x90x61mm / 1050*90*61mm (length x width x height).
2Weight per piece2.52 / 4.52 kgs
3Packaging quantity2
4Packaging size62*22*10cm / 124*22*10cm
5Gross weight KG)6kg /10kg
Material & Finishing
1Luminaire Body material & colorSS316 trim, Anodized(Passivated) aluminium6063 housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable, neoprene material,H05RN-F 2x1mm2. The length is 0.3 meter.
5Mounting Sleeve/ Spike/ OthersAnodizied(passivated) Aluminum 6063 CNC machined. Dark grey.
6Glass8mm
7Loading Capacity2000kgs
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground 522x76x87.5/ 1022x76x87.5mm  (length x width x height)
Classification
1ApprobationCE
2IPIP67
3IKIK08
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

4.Illuminance Distance Curve

5.Selling Point

1) IP68 Linear Underground Light, can be used in water.

2) Warranty: 3 years

3) Experienced sales and technicians to serve you.
