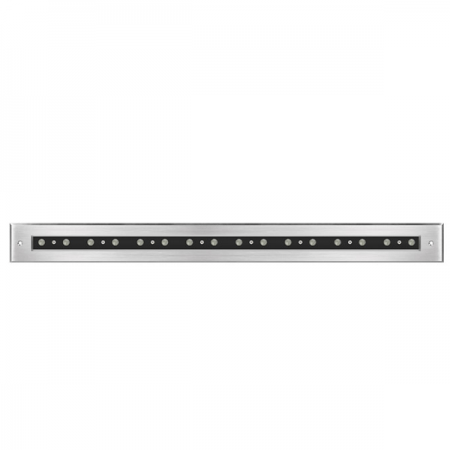

32W IP67 Linear Inground Light 1 meter

562 viewers

Item No.: UL-P-C006
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT:  2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-C006 Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-C006
1LED Type and Quantity16*2W CREE XPE
2LED quantity in series connection*in-parallel connection16*1
3LED BINVF=(3.0~3.2)V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.16A
7Current for each pc LED0.58A
Electrical\electronic
1Rated Input Voltage & FrequencyAC100-240V
2System Power32W±10%
3Control/DimmingON\OFF
4Power Factor≧0.5
5Surge Protection1 kv: L-N/1 kv:LN-PE
Optical
1System Lumen Package(typical)2250~2400 lm
2System Efficacy(typical)lm/w75 LM/W
3Beam AngleOval beam Pan+tilt (20°+60°),(40°+60°),(15°+45°),(10°+45°)
Mechanical & packaging
1Luminaire Size (L*W*H)1000 x 63 x 78 (mm) Length x Width x Height
2Weight per piece4.83 kgs
3Packaging quantity10
4Packaging size110*34*211cm
5Gross weight KG)49.3kg
Material & Finishing
1Luminaire Body material & colorSS316 trim, Anodized(Passivated) aluminium 6063 housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable, neoprene material,H05RN-F 2x1mm2. The length is 0.3 meter.
5Mounting Sleeve/ Spike/ OthersAnodizied(passivated) Aluminum 6063 CNC machined. Dark grey.
6GlassTempered glass, thickness is 8mm
7Loading Capacity2000kgs
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground 980 x 56 x 78 (mm) Length x Width x Height
Classification
1ApprobationCE
2IPIP67
3IKIK08
4Lum ClassificationI
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Selling Point

1) IP67 Linear Underground Light

2) Marine Grade SS316 front face

3) The car can drive it over.

4) 3 years warranty

5) Experienced sales and technicians to serve you.
