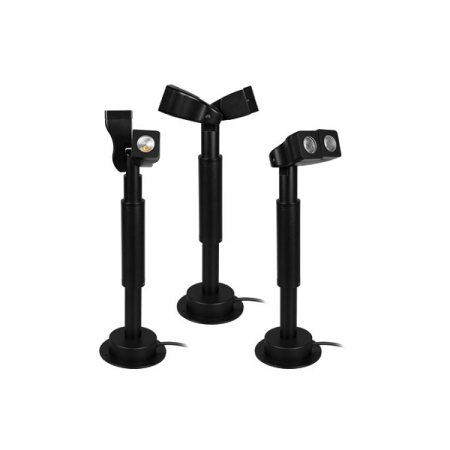

High End Double Head Landscape Light/Garden Spot Light

542 viewers

SKU: SP-P-1018 Garden Spot Light Category:
  1. Product  Size

  1. Technical Specification
(UL-P-1018 Garden Spot Light)        SP-P-1018 Garden Spot Light
1LED Type and Quantity2*7.5W CREE CXA1304 COB
2LED quantity in series connection*in-parallel connection1*2
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 6 steps
6Current for all LED0.625A(DC24V)
7Current for each pc LED0.7*2A
1Rated Input Voltage & FrequencyDC12/24V
2System Power15W±10%
3ControlON\OFF PWM
1System Lumen Package(typical)750~800 lm
2System Efficacy(typical)lm/w50 LM/W
3Beam Angle15°, 25°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)140 x 385 to 500 (mm) adjustable Diameter x Height
2Weight per piece1.35kgs
3Packaging quantity2
4Packaging size40*32.5*17CM
5Gross weight KG)4.5kg
Material & Finishing
1Luminaire Body material & colorAnodized Aluminium housing CNC machined
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC of outdoor cable, neoprene material, H05RN-F 2×1.0mm², length is 1 meter
5Mounting Sleeve/ Spike/ OthersWith Aluminium spike,with Aluminium round base and the adjustable pole
6GlassTempered glass, thickness is 3mm
7Loading Capacity220kgs
1Surface/Recessed/Suspended/…Surface installation
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Output

  1. Selling Point

1) Double Head Lamp

2) Anodized Aluminum 6063, CNC machined.

3) High quality CREE LED chip.

4) Nice quality driver inside.

5) Good quality control.

6) 3 years warranty.

7) 8-10 years professional sales and technicians to serve you.
