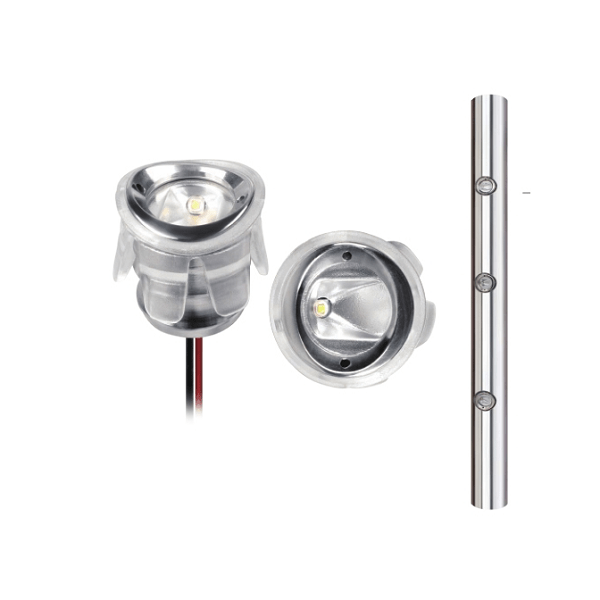

Handrail Light

545 viewers

SKU: DL-P-1014 Categories: ,
Share:
  1. Product Size

  1. Technical Specification
DL-P-1014
1LED Type and Quantity1*1.8W CREE XHP35
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=(11.0~11.2)V
4CCT & CRI2200K\3000K\3500K\4000K\4500K\5000\5700K\6500K Ra≥80
5SDCM< 6 steps
6Current for all LED0.15A(DC24V)
7Current for each pc LED0.075A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power1.8W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)150lm
2System Efficacy(typical)lm/w80 LM/W
3Beam Angle150° x 5°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)Φ25*28mm
2Weight per piece0.05kgs
3Packaging quantity100
4Packaging size32.5*26*22CM
5Gross weight KG)5.5kg
Material & Finishing
1Luminaire Body material & colorStainless Steel 316, Shining Silver Color
2Material for Lens or ReflectorABS Reflector
3in conformity with Rohs or not?Yes
4External cable size and lengthTeflon cable 2*0.3mm², the length is 0.25 meter
5Glass2mm
6Loading Capacity110kgs
7Mounting Sleeve/ Spike/ OthersPC spring
Mounting
1Surface/Recessed/Suspended/…Recessed installation
Classification
1ApprobationCE
2IPIP67
3IKIK06
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Application
