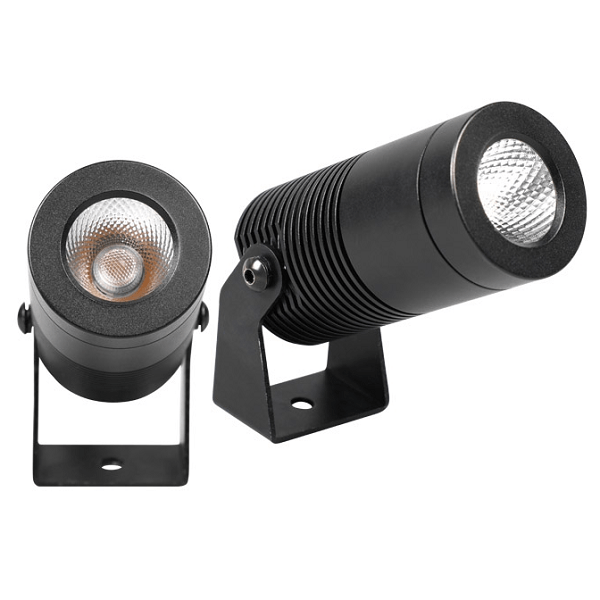

Garden Spot Light 8W

561 viewers

SKU: SP-P-1010 8W-1 Category:
Share:
  1. Product Size

  1. Technical Specification
(UL-P-1010 8W-1)        SP-P-1010 8W-1
1LED Type and Quantity1*8W CREE CXA1304 COB
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=9V
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 6 steps
6Current for all LED0.7A
7Current for each pc LED0.7A
Electrical\electronic
1Rated Input Voltage & FrequencyAC100~265V
2System Power8W±10%
3ControlON\OFF
4Power Factor≧0.5
5Surge Protection1 kv: L-N/1 kv:LN-PE
Optical
1System Lumen Package(typical)560 lm
2System Efficacy(typical)lm/w70 LM/W
3Beam Angle25° 36°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)44×99 (mm) Diameter x Height
2Weight per piece0.39kgs
3Packaging quantity30
4Packaging size51*28*17CM
5Gross weight KG)12.8kg
Material & Finishing
1Luminaire Body material & colorPassivated (Strong Anodized) Aluminium housing CNC machined
2Material for Lens or ReflectorReflector
3in conformity with Rohs or not?Yes
4External cable size and length1PC of outdoor cable, neoprene material, H05RN-F 3×1.0mm², length is 1 meter
5Mounting Sleeve/ Spike/ OthersScrews/Spike/Round Base
6GlassTempered glass, thickness is 3mm
7Loading Capacity220kgs
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK04
4Lum ClassificationI
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3



  1. Selling Point

1) Passivated (Strong Anodized) Aluminum 6063, CNC machined.

2) High quality CREE COB LED chip.

3) Nice quality driver inside.

4) 3 years warranty.

5) 8-10 years professional sales and technicians to serve you.

  1. Light Distribution Curve

5.Illuminance Distance Curve
