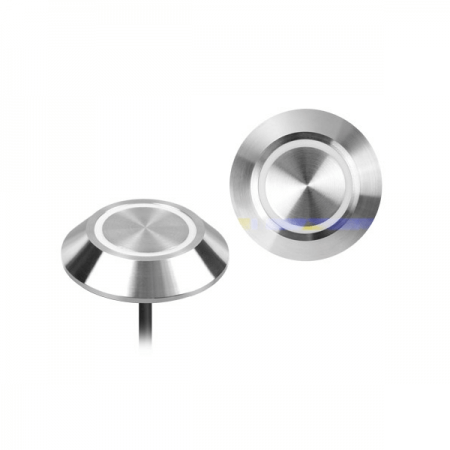

3W Easy installed Inground Light

589 viewers

Item No.: UL-P-1021-0300-A-B
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K\3000K\4000K\6000K,R,G,B
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1021-0300-A-B Category:
Share:
  1. Product Size



  1. Technical Specification
UL-P-1021-0300-A-B
1LED Type and Quantity4*0.75W Osram 3030
2LED quantity in series connection*in-parallel connection2*2
3LED BINVF=(6.0~6.2)V
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 6 steps
6Current for all LED0.125A(DC24V)
7Current for each pc LED0.12A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power3W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)10 lm
2System Efficacy(typical)lm/w3 LM/W
3Beam Angle130°
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)50×15.8 (mm) Diameter x Height
2Weight per piece0.08kgs
3Packaging quantity100
4Packaging size37.5*37.5*12.5CM
5Gross weight KG)7.8kg for NW, 9kg for GW
Material & Finishing
1Luminaire Body material & colorPassivated Aluminium housing CNC machined
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC PVC cable,  2×0.35mm², length is 0.3 meters
5Mounting Sleeve/ Spike/ OthersScrews
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK06
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Distribution Curve

  1. Illuminance Distance Curve

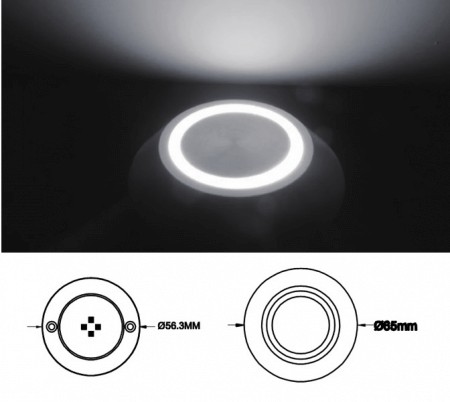

  1. Installation Drawing

  1. Selling Point:

1.Nice Light Output, 360olight output

2.Easy to install, very thin, use screw to install it.

3.Marine grade stainless steel 316 cover & solid anodizing housing for anticorrossion, can be used near to sea.

4.Good quality, 3 years warranty
