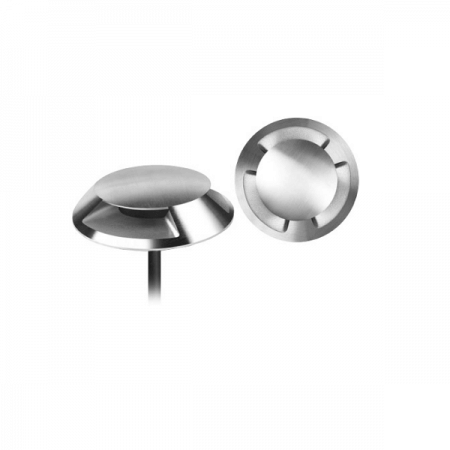

3W Easy installed, 3 ways light output Inground Light

578 viewers

Item No.: UL-P-1021-0300-A-C3
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K\3000K\4000K\6000K,R,G,B
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1021-0300-A-C3 Category:
Share:
  1. Product Size



  1. Technical Specification
UL-P-1021-0300-A-C3
1LED Type and Quantity4*0.75W Osram 3030
2LED quantity in series connection*in-parallel connection2*2
3LED BINVF=(6.0~6.2)V
4CCT & CRI2700K\3000K\4000K\6000K,R,G,B Ra≥80
5SDCM< 6 steps
6Current for all LED0.125A(DC24V)
7Current for each pc LED0.12A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power3W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)22 lm
2System Efficacy(typical)lm/w7 LM/W
3Beam Angle90*30°*3
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)65×17 (mm) Diameter x Height
2Weight per piece0.14kgs
3Packaging quantity120
4Packaging size37.5*37.5*12.5CM
5Gross weight KG)16.8kg for NW, 17.3kg for GW
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC PVC cable,  2×0.35mm², length is 0.3 meters
5Mounting Sleeve/ Spike/ OthersScrews
Mounting
1Surface/Recessed/Suspended/…Surface installation
Classification
1ApprobationCE
2IPIP67
3IKIK10
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Output

  1. Installation Drawing

  1. Selling Point

1. Nice Light Output, 360o light output

2. Easy to install, very thin, use screw to install it.

3. Marine grade stainless steel 316 cover & solid anodizing housing for anticorrossion, can be used near to sea.

4. Good quality, 3 years warranty
