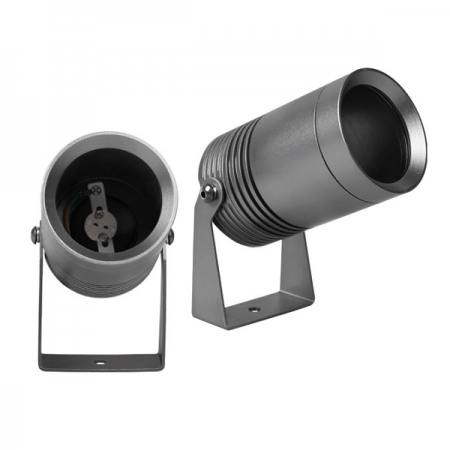

DIY MR16 Landscape Light fixture/Garden Spot Light

548 viewers

SKU: SP-P-1012-MR16 Category:
  1. Product Size

  1. Technical Specification
(UL)/   SP-P-1012-MR16
1Rated Input Voltage & FrequencyDC12V
Mechanical & packaging for front cover
1Luminaire Size (L*W*H)61 x 95 (mm) Diameter x Height
2Weight per piece0.53kgs
3Packaging quantity18
4Packaging size36.5*28*26CM
5Gross weight KG)10.5kg
Material & Finishing
1Luminaire Body material & colorAnodzing aluminium 6063 housing CNC machined,dark grey color
2The height of GU10 Bulb54mm(including pins)
3in conformity with Rohs or not?Yes
4External cable size and length1PC of outdoor cable, neoprene material, H05RN-F 2×1.0mm², length is 1 meter
5Mounting Sleeve/ Spike/ OthersScrews/Spike/Round Base
6GlassTempered glass, thickness is 3mm
7Loading Capacity220kgs
1Surface/Recessed/Suspended/…Surface installation
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3


  1. Selling Point

1) Anodizing Aluminum 6063, CNC machined.

2) DIY, you can put MR16 bulb yourself. The limit of MR16 Bulb is 54mm(the height includes the pins)

3) 3 years warranty.

4) 8-10 years professional sales and technicians to serve you.
