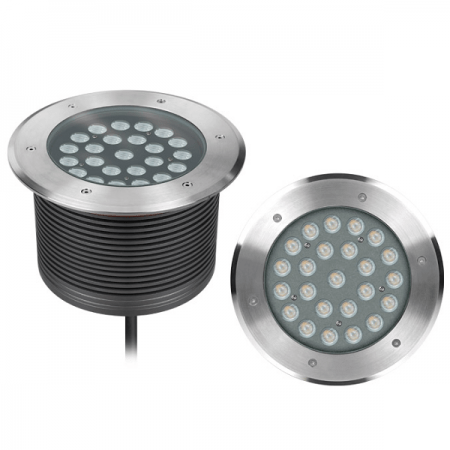

40W Asymmetrical LED/SMD Inground Light

560 viewers

Item No.: UL-P-2401-A-1
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 3000K, 6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-2401-A-1 Category:
Share:
  1. Product Size



  1. Electric Property:
Item No.UL-P-2401-A-1
Light Source40W, 24x2W CREE LED chip
Input Voltage90-240VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle6° 8° 10° 17° 23° 28° 43° 58°

Asymmetric 15° + 15°/ 25°/ 30°/ 45° /60°

Luminous Flux(lm)2300lm to 2500lm
CRI>80



  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=10mm

5) Load capacity: 2000kgs truck

6) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

7) Cable gland: PG7 IP67 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

14) Asymmetric lens, anti-glare.

  1. Lighting Distribution Curve

  1. Illuminance Distance Curve

  1. Light Output
