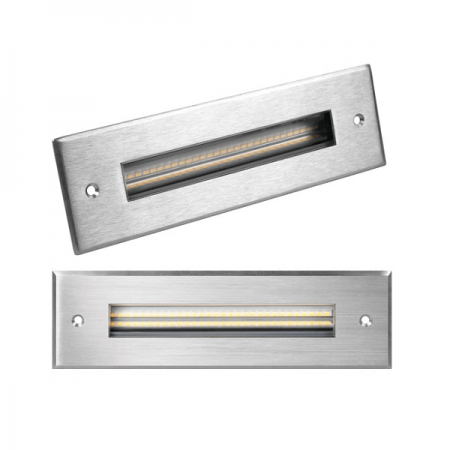

8W Asymmetrical Linear LED Inground Light

556 viewers

Item No.: UL-P-C001
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 3000K, 6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-C001 Category:
Share:
  1. Product Size:

  1. Electric Property:
Item No.UL-P-C001
Light Source30pcs of 2835 SMD LED chips
Power8W
Input Voltage100-245VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle120° & asymmetric 30°
Lumens330lm to 350lm
CRI>80
  1. Specifications

1) Asymmetric lens design for anti-glare.

2) Linear Underground Light, also used it as step light, stair light, wall light

3) Housing: Passivated 6063 aluminum

4) Trim: Stainless steel 316L

5) Glass: Step style, Tempered glass: T=8mm,

6) Load capacity: 2000kgs, .

7) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

8) Cable gland: PG7 cooper with nickel coated

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
