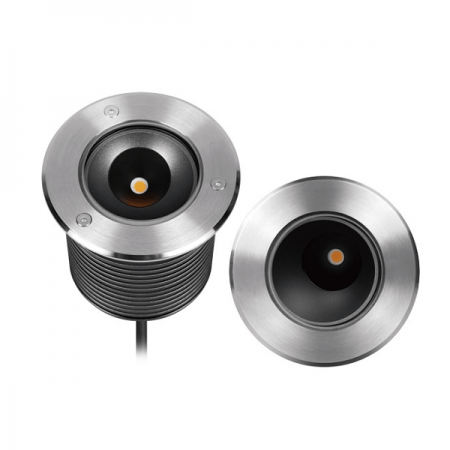

15W Asymmetrical COB Inground Light

532 viewers

Item No.: UL-P-15W-COB-DH
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-15W-COB-DH Category:
Share:
  1. Product Size

  1. Technical Specification
Model No.: UL-P-15W-COB-DH
LED
1LED Type and Quantity1*15W CREE CXA1816
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=36V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.1A(DC24V)
7Current for each pc LED0.35A
Electrical\electronic
1Rated Input Voltage & FrequencyAC100~245V
2System Power15W±10%
3Power Factor>0.9
4Control/DimmingON/OFF
5Surge Protection1 kv: L-N/1 kv:LN-PE
Optical
1System Lumen Package(typical)500 lm
2System Efficacy(typical)lm/w33 LM/W
3Beam AngleAsymmetric15°* 70°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø100×83 (mm) Diameter x length
2Weight per piece0.93 kgs
3Packaging quantity18
4Packaging size35*35*27.5cm
5Gross weight KG)17.5KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3GlassTempered glass, T=8mm
4Loading Capacity2000kgs
5In conformity with Rohs or notYes
6External cable size and length1PC rubber cable, neoprene material, 1M H05RN-F 3x1mm2
7Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey. Or PVC
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 90mm
Classification
1ApprobationCE
2IPIP67
3IKIK09
4Lum ClassificationIII
5Working temp  -40℃~70℃
6Life time in hours50000h
7Warranty years3
  1. Selling Point:

1) Front cover: Stainless Steel 316L or passivated aluminum.

2) Housing and mounting sleeve: Extruded Passivated 6063 aluminum

3) Power cable: Rubber cable of neoprene material, H05RN-F, length is 1 meters

4) Driver: Constant current output, Rubycon cap, can be used under very low temperature.

5) Operating temperature: -40 to +70 ℃

6) IP Rating: IP67

7) Warranty: 3 years

  1. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Light Output
