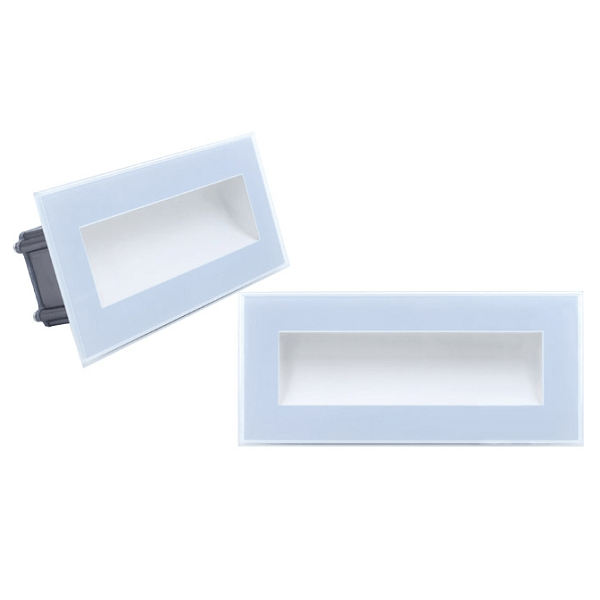

Asymmetric Wall Light 5W 400lm

585 viewers

SKU: WL-P-005B Category:
  1. Size:

  1. Electric Property:
Item No.(SP-P-005B)   WL-P-005B
Light Source30pcs of 2835 SMD LED chips
Input Voltage220VAC, 12VDC, or 24VDC
Color temperature(CCT)3000K, 4000K,6000K
Beam angle120° & Asymmetric 45°
Lumens380lm for 3000K, 400lm for 6000K


  1. Specifications

1) Outdoor Wall Light, also used it as step light, stair light

2) Housing: Passivated 6063 aluminum

3) Front cover: Tempered glass, T=4mm

4) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Rubycon cap: Can be used under -40 ℃

11) Operating temperature: -40 to +70 ℃

12) Mounting sleeve: Passivated 6063 aluminum

13) IP Rating: IP65

14) Warranty: 3 years

  1. Lighting Distribution

  1. Light Distance

  1. Light Output
