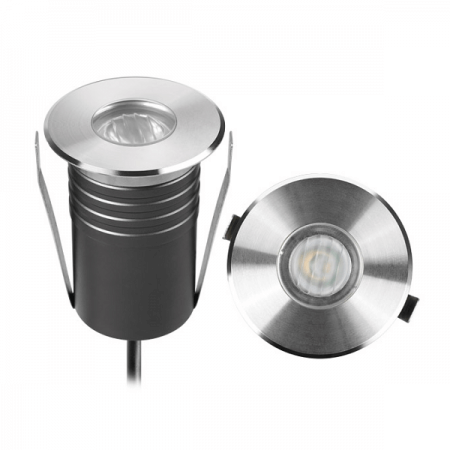

3W asymmetric small inground light

534 viewers

Item No.: UL-P-1009-1
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 3000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1009-1 Category:
Share:
  1. Product Size:

  1. Electric Property:

Item No.

UL-P-1009-1

Light Source3W, 1x3W CREE XPE LED chip
Input Voltage12VDC to 24VDC or 220VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle30° 40° 50° 60°  & asymmetric 18°
Lumens110lm to 130lm
CRI>80



  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=6mm

5) Load capacity: 610kgs

6) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Plastic

12) IP Rating: IP67

13) Warranty: 3 years

  1. Lighting Distribution Curve:

  1. Illuminance Distance Curve:
