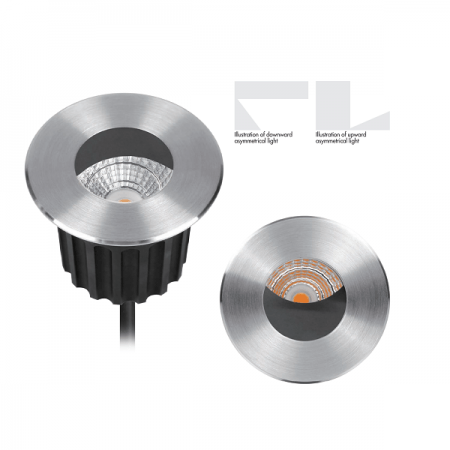

6W anti-glare glass Inground Light with straight mounting sleeve

577 viewers

Item No.: UL-P-6W-COB-F-1
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-6W-COB-F-1 Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-6W-COB-F-1
1LED Type and Quantity1*6W CREE CXA1304
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=9V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.25A(DC24V)
7Current for each pc LED0.14A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power6W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)260~280 lm
2System Efficacy(typical)lm/w45 LM/W
3Beam Angle24°, 36°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø65×69 (mm) Diameter x length. The height of mounting sleeve is 110mm.
2Weight per piece0.45 kgs
3Packaging quantity16
4Packaging size49*25*23.5cm
5Gross weight KG)8.5KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorReflector
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable, neoprene material,H05RN-F 2x1mm2. The length is 1 meter.
5Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey.
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 54mm
Classification
1ApprobationCE
2IPIP67
3IKIK08
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Output
