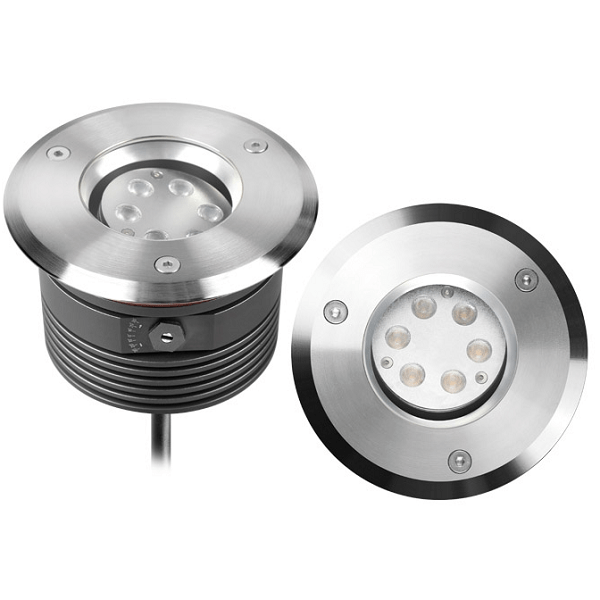

Adjustable by screwdriver LED Inground Light 6W

616 viewers

Item No.: UL-P-6001
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 3000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-6001 Category:
Share:
  1. Product Size:

  1. Electric Property:
Item No.UL-P-6001
Light Source6W, 6x1W CREE XPE LED chip
Input Voltage24VDC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle20° 40° 60°
Luminous Flux(lm)480lm to 540lm
CRI>80
  1. Specifications

1) Underground Light, also call inground light, garden light

2) Housing: Passivated 6063 aluminum

3) Front cover: Stainless steel 316L

4) Glass: Step type, tempered glass, T=8mm

5) Load capacity: 2000kgs truck

6) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m

7) Cable gland: PG7 IP67 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP67

13) Warranty: 3 years

  1. IES File:

  1. Illuminance-distance Curve:
