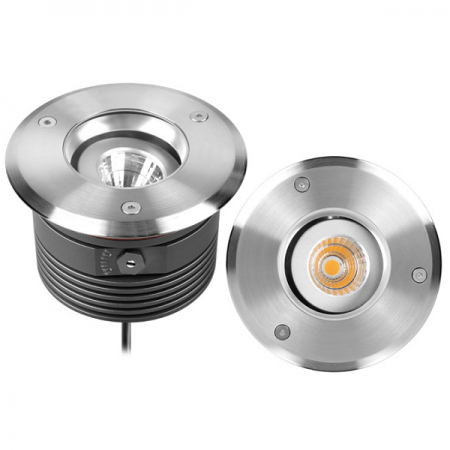

6W Adjustable Inground Light

545 viewers

Item No.: UL-P-6W-COB-G
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K/3000K/4000K/6000K
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-6W-COB-G Category:
Share:
  1. Product Size

  1. Technical Specification
UL-P-6W-COB-G
1LED Type and Quantity1*6W CREE CXA1304
2LED quantity in series connection*in-parallel connection1*1
3LED BINVF=36V
4CCT & CRI2700K/3000K/4000K/6000K Ra≥80
5SDCM< 6 steps
6Current for all LED0.25A(DC24V)
7Current for each pc LED0.14A
Electrical\electronic
1Rated Input Voltage & FrequencyDC24V
2System Power6W±10%
3Control/DimmingON\OFF PWM
Optical
1System Lumen Package(typical)470~500 lm
2System Efficacy(typical)lm/w83 LM/W
3Beam Angle24°, 36°
Mechanical & packaging
1Luminaire Size (L*W*H)Ø116x 73 (mm) Diameter x length
2Weight per piece1.38 kgs
3Packaging quantity12
4Packaging size40*27*26.5cm
5Gross weight KG)17.5KG
Material & Finishing
1Luminaire Body material & colorSS316 trim, Aluminium housing CNC machined, dark grey color
2Material for Lens or ReflectorPMMA
3in conformity with Rohs or not?Yes
4External cable size and length1PC rubber cable, neoprene material, 1M H05RN-F 2x1mm2
5Mounting Sleeve/ Spike/ OthersPassivated (Anodizing) Aluminum CNC machined. Dark grey. Or PVC
Mounting
1Surface/Recessed/Suspended/…Recessed installation
2cut-out size for on ground Φ 100mm
Classification
1ApprobationCE
2IPIP67
3IKIK09
4Lum ClassificationIII
5Working temp  -25℃~50℃
6Life time in hours50000h
7Warranty years3
  1. Light Output
