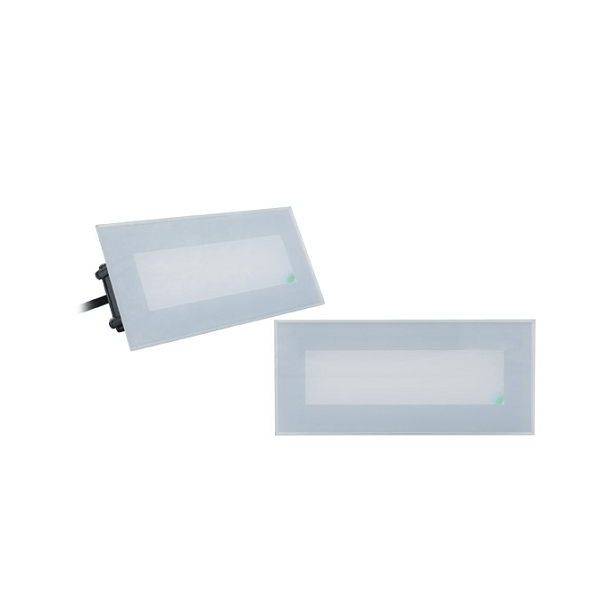

8W Emergency LED Light Wall Light Outdoor Wall Light

542 viewers

SKU: WL-P-005E Category:
Share:
  1. Product Size:

2.Electric Property:

Item No.(SP-P-005E)   WL-P-005E
Light Source12pcs of 3030 SMD LED chips
Power8W
Input Voltage220VAC
Color temperatureWarm White 3000K, Cool White 6000K
Beam angle120°
Lumens240lm
CRI>80



  1. Specifications

1) Except for the normal light, can be emergency light for 90 minutes.

2) Outdoor Wall Light, also used it as step light, stair light

3) Housing: Passivated 6063 aluminum

4) Front cover: Tempered glass, T=4mm

5) Load capacity: 320kgs, people can step on the product, but car can not drive it over.

6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=0.3m

7) Cable gland: PG7 cooper with nickel coated

8) Gasket: O-ring PMQ silicon seal

9) Driver: Constant current output

10) Operating temperature: -20 to +60 ℃

11) Mounting sleeve: Passivated 6063 aluminum

12) IP Rating: IP65

13) Warranty: 3 years

  1. IES File:

  1. Illuminance-distance Curve:
